ASGCO 3-DEM Chute Analysis Program

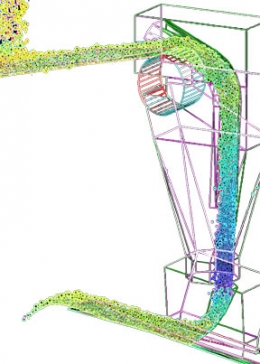

ASGCO's 3-DEM (Discrete Element Methods) is a revolutionary way to handle granular and particulate material handling problems through computer simulation and 3-D CAD for complete transfer point design and fabrication. Combined with our conveyor and material handling knowledge, engineering capabilities and 3-DEM Chute Design software are able to make transfer point problems a thing of the past. conveyor belt

  • Increase Production Capabilities - by helping to eliminate spillage, chute plugging, belt wear, dust control and noise.
  • Optimize Life on Conveyor Belt and Components - by minimizing impact and top cover wear by using a soft or curved chute loading design.
  • Minimize Material Spillage - in the design by center loading the material, load the material at a uniform rate and optimize the material flow in direction of travel after the belt is fully troughed.
  • Reduce the Need for Dust Control and Suppression - by minimizing the dust through loading the material at a uniform rate through a curved of soft loading design, maintain effective skirting, internal wear liners and dust curtains staggered throughout the loading area.

conveyor belt

There are ten steps that need to be completed to have a trouble-free transfer point.

  1. Take current drawings of existing transfer and render them accurately in 3-D CAD.
  2. Identify chute geometry restriction and manufacturing limitations.
  3. Identify project goals (i.e. flow restrictions, dust emissions, optimize chute and belt life).
  4. Identify material properties and develop representative particle description.
  5. Make design changes to chute geometry.

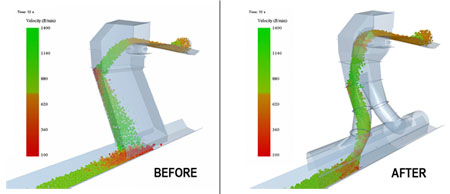

  6. Simulate performance using 3-DEMTM Chute Design software.
  7. Evaluate simulation results and choose the best design that meets the project goals.
  8. Detail the new design for manufacturing
  9. Manufacture the new transfer point including other conveyor components

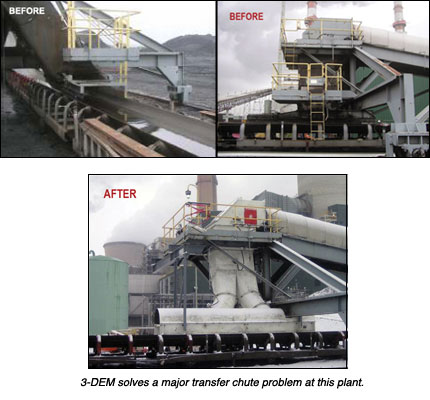

  10. Installation of the new transfer chute and other conveyor components (i.e. belt cleaners, skirting systems and load zone beds or rollers).
